16 GALLON TRANSIT VAN UNDERCARRIAGE WATER TANK
1/6
  • 16 GALLON TRANSIT VAN UNDERCARRIAGE WATER TANK

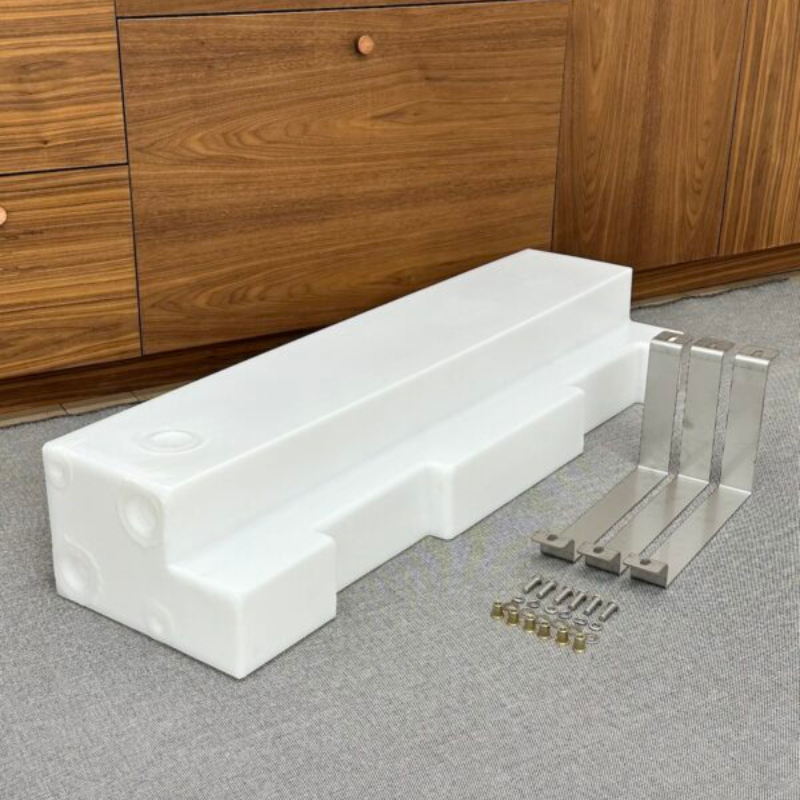

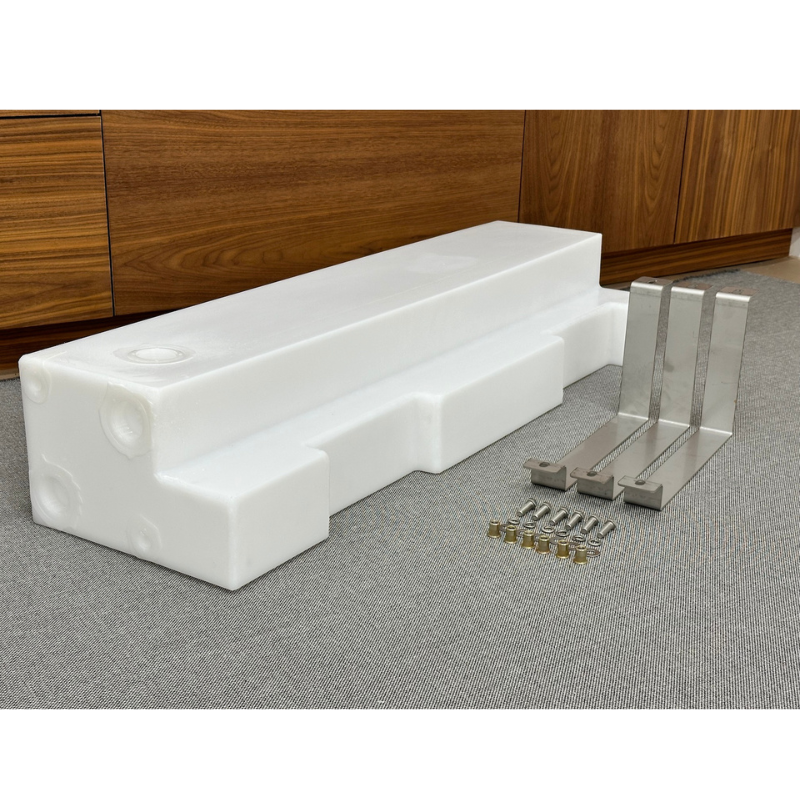

  • 16 GALLON TRANSIT VAN UNDERCARRIAGE WATER TANK with (3) Stainless steel Brackets, Stainless steel hardware, and rivnuts included.

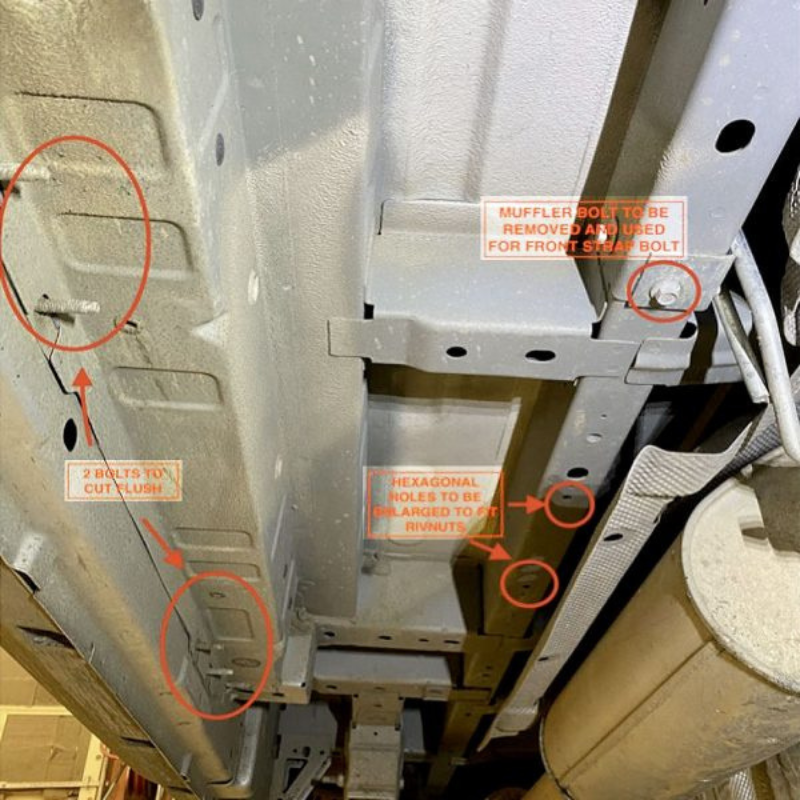

  • 16 GALLON TRANSIT VAN UNDERCARRIAGE WATER TANK - Installed With Notes

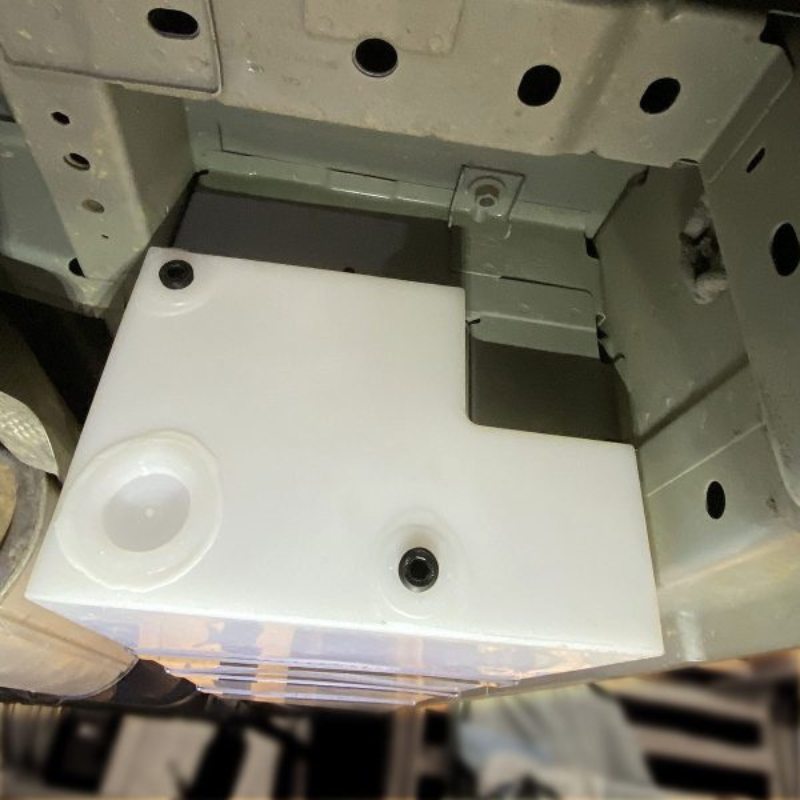

  • Installed 16 GALLON TRANSIT VAN UNDERCARRIAGE WATER TANK

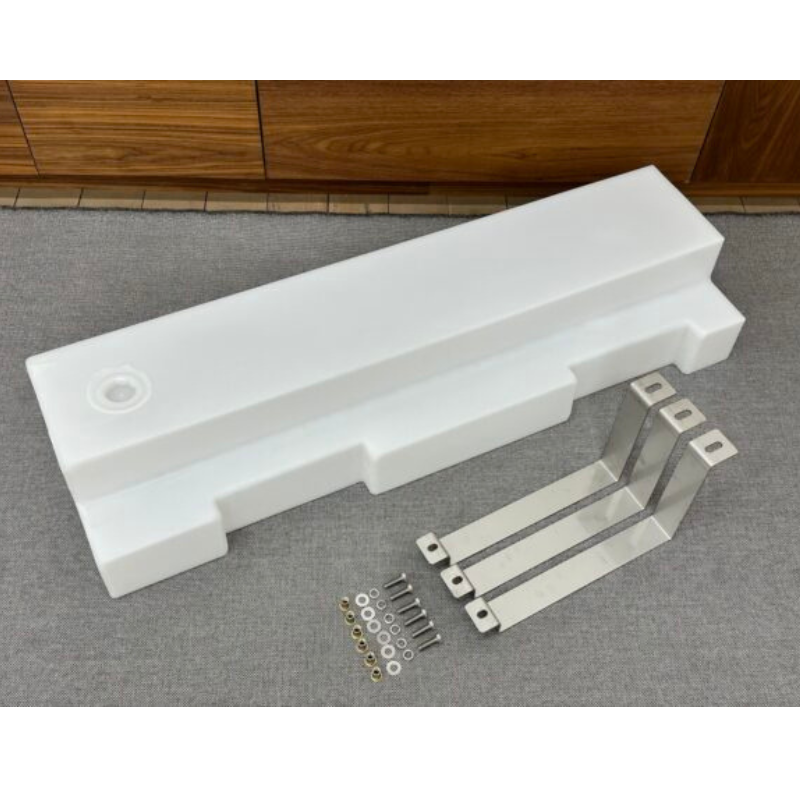

  • 16 GALLON TRANSIT VAN UNDERCARRIAGE WATER TANK - Side View With Included Installation Items

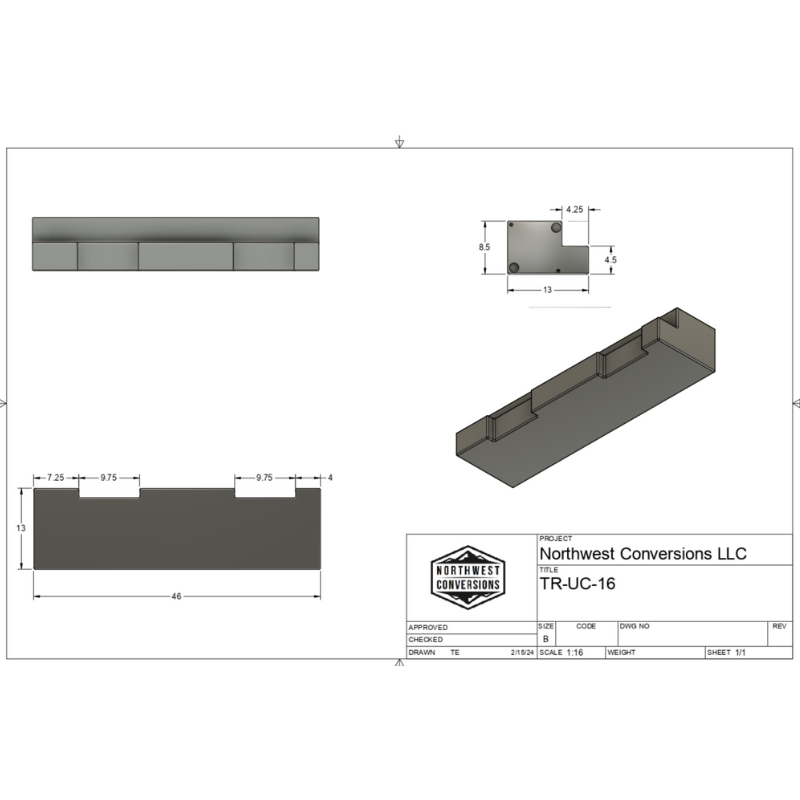

  • 16 GALLON TRANSIT VAN UNDERCARRIAGE WATER TANK Spec Sheet
Transit Van 16 Gallon Undercarriage Water Tank
$299.00

The 16 Gallon Transit Van Undercarriage Water Tank is designed to fit under the van on the Passenger side under the slider door area but can also fit the driver side next to the fuel tank.  (3) Stainless steel laser cut straps, 3/8″ hardware and 3/8″ rivnuts are included (Rivnut tool needed for installation not included).  Tank fits Ford Transit van.



The Transit Van 16 Gallon Undercarriage Water Tank is ingeniously designed to fit seamlessly under the passenger side of your van, specifically in the slider door area, while also offering the flexibility to be installed on the driver side next to the fuel tank. This strategic placement not only maximizes your van's interior space but also keeps the tank out of sight, maintaining a clean and organized look. By utilizing the undercarriage, you can free up valuable cargo space for other essentials, making it an ideal solution for those who want to optimize their van for travel and adventure.



In addition to its space-saving benefits, this water tank is constructed from BPA-free, food-grade polyethylene, ensuring that your water supply remains safe and uncontaminated. With a capacity of 16 gallons, it provides ample water for either fresh and grey water needs, making it a versatile addition to your van setup. The tank features multiple ports for easy plumbing connections, allowing for straightforward integration into your existing water system. Included with the tank are stainless steel laser-cut straps and hardware for secure installation, ensuring that it remains firmly in place during your travels. With the Transit Van 16 Gallon Undercarriage Water Tank, you can enjoy the convenience of having a reliable water source while maximizing the functionality of your van.



Note: The Transit Van 16-Gallon Undercarriage Water Tank drop ships from outside vendor.  Serg Supply does not have control over vendor's current lead time.

Features

  • Compatibility: Fits Transit Van undercarriage Passenger side slider door area; Tank will also fit Driver side; Fits Transit Trail with Factory Running Boards.
  • Usage: Tank can be used for fresh or grey water.
  • Capacity: 16 Gallon Tank.
  • Design: Tank is designed not to be pressurized (needs to be vented).
  • Material: BPA Free, food grade polyethylene plastic.
  • Ports: Tank has (1) 1.5″ NPT port and (2) 1/2″ NPT ports on end that will face the rear of the van; Tank has (1) 1.5″ NPT port on top.
  • Included Hardware: *(3) Stainless steel Brackets, Stainless steel hardware, and rivnuts included.
  • Installation Requirements: Requires drilling of (3) new holes (17/32″) for 3/8″ rivnuts near pinch weld; enlarging (2) hexagonal holes on frame; using (1) factory bolt for exhaust hanger location; This will require a rivnut tool (Not Included).
  • Made in the USA!



Note: The Transit Van 16-Gallon Undercarriage Water Tank drop ships from outside vendor.  Serg Supply does not have control over vendor's current lead time.

Specifications

  • Overall dimensions: 46″L x 8.5″H x 13″W.
  • Compatibility: Fits Transit Van Undercarriage



Note: The Transit Van 16-Gallon Undercarriage Water Tank drop ships from outside vendor.  Serg Supply does not have control over vendor's current lead time.
