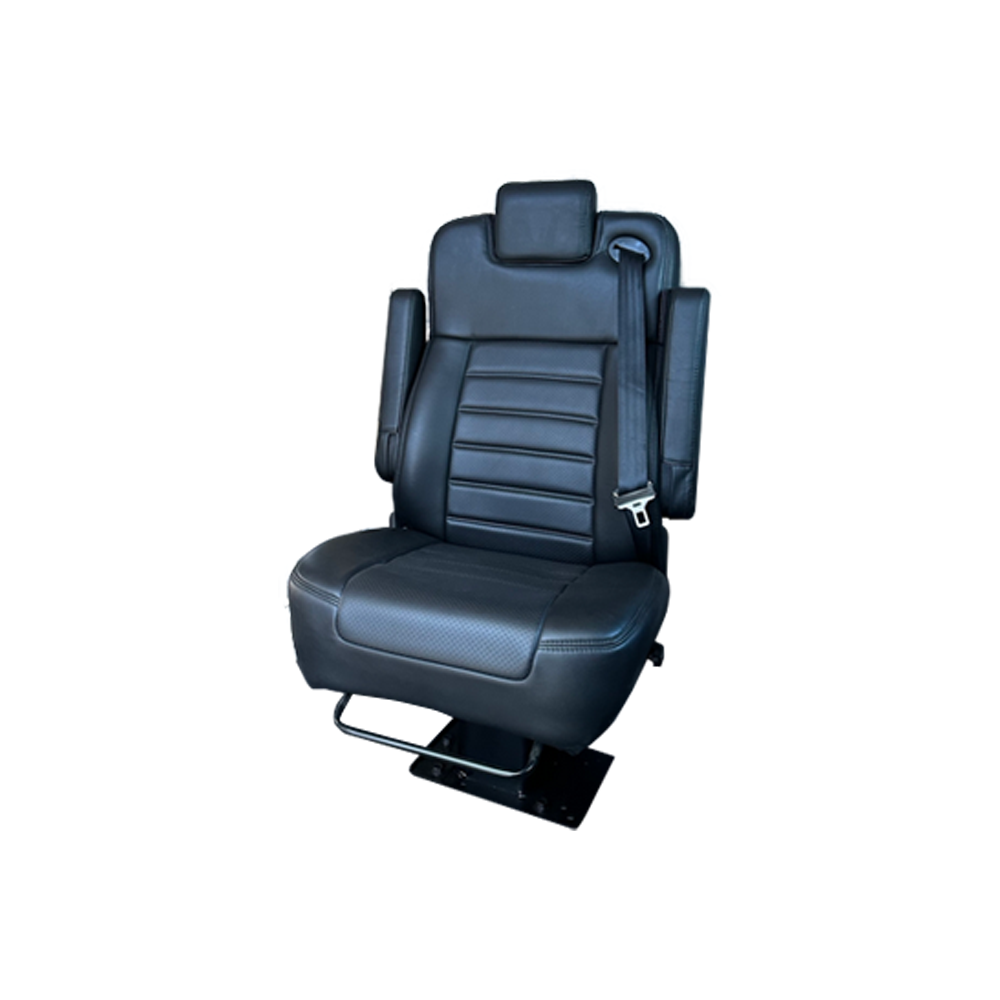

Complete your van build with the JMG Nex-Gen Swivel Chair!

Complete your van build with the JMG - 20” Nex-Gen Swivel Chair, designed for compatibility with both Sprinter vans and Ford Transit vans. This stylish captain chair, finished in a sleek black leatherette material, not only enhances the aesthetic of your interior but also provides exceptional comfort and functionality. With a maximum recline of 40 degrees from the upright position, you can relax and enjoy your travels in style.

Safety is paramount with the JMG Nex-Gen Swivel Chair, featuring integrated 3-point seat belts and two armrests for added comfort. Each chair is equipped with CRS anchor points located between the seat and back cushion, making it easy to secure a car seat for your little ones. The innovative swivel pedestal allows for 360-degree rotation, providing versatility and ease of movement within your van. The pedestal also includes slide tracks with 5 inches of travel, ensuring a customizable fit for your space.

Installation is straightforward, as each chair comes with a single mounting plate, support brackets, and Grade 5 hardware required for secure setup. Please note that U-shaped support brackets are specifically designed for Sprinter Van applications when the swivel chair is installed in the second-row area. The JMG Systems design wraps around the Sprinter frame rails, utilizing them as main anchor points to comply with Mercedes Benz Sprinter BEG Standards. Order your JMG - 20” Nex-Gen Swivel Chair today and enjoy the perfect combination of style, safety, and convenience on your next adventure!

Designed and Tested by JMG Systems
Manufactured by Cerullo

Note: Please allow 2-3 weeks for shipping, as this product drop ships from an outside vendor, and lead times may vary. Serg Supply does not have control over vendor's current lead time.

Features

• Stylish Design: 20" Captain Chair finished in a black leatherette material
• Max Recline: 40 degrees back from the upright position
• Safety First: Integrated 3-Point Seat Belts
• Comfort Enhancements: 2x Armrests
• Child Safety Compatibility: All seats come standard with CRS anchor points between the seat/back cusion to secure a baby seat or car seat
• Swivel Functionality: All seats are mounted on a swivel pedestal with Slide Tracks (5" Travel), this swivel pedestal allows the seat to rotate 360 degrees
• Easy Installation: All seats come with a single mounting plate with support brackets* and Grade 5 Hardware required for installation.
  *U-Shaped support brackets are only used on Sprinter Van applications when a swivel chair is installed in the 2nd Row Area.

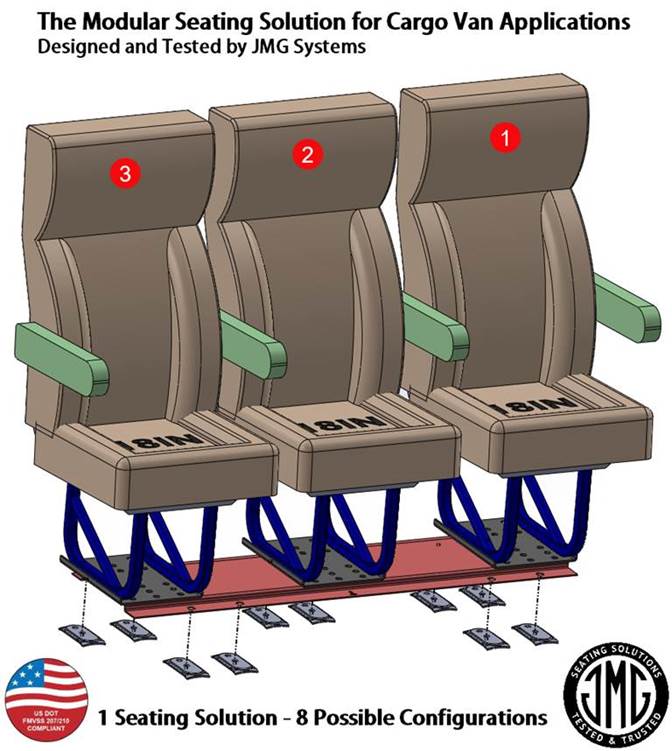

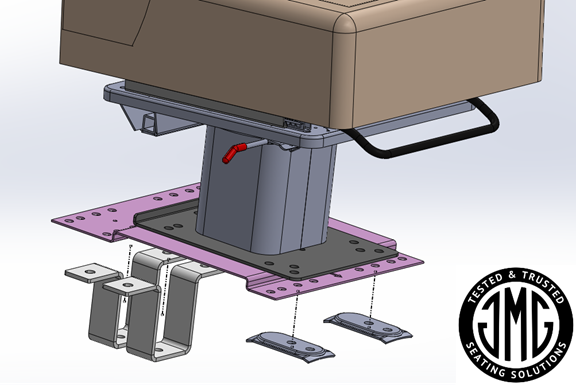

• Design Compliance: The photo diagram shows how JMG Systems designed the Swivel Chair Cargo Van Seating Solution to work together and wrap around the Sprinter Frame Rails!  The frame rails are used as the main anchor points for our mounting system.  We have done this to comply with the Mercedes Benz Sprinter BEG Standards
• Designed, Manufactured & Assembled in the USA!

Specifications

• Compatibility: Mercedes Sprinter & Ford Transit Vans
• Size: 20"
