Need an insulation solution for your van conversion? 3M™ Thinsulate™ Insulation absorbs sounds to provide superior acoustic control in vehicles. Automotive acoustic insulation can be used for a variety of sound management applications. 3M™ Thinsulate™ Insulation has extremely efficient sound absorption properties.

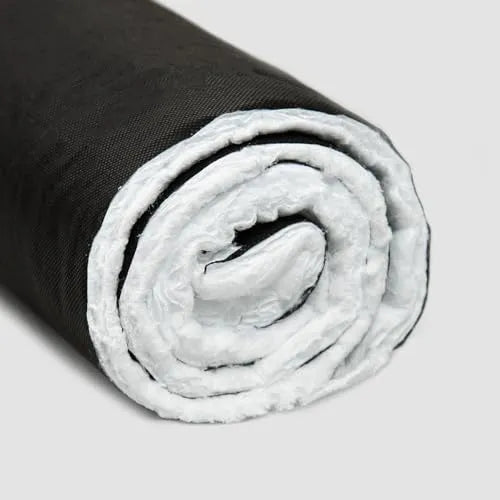

3M™ Thinsulate™ Insulation is a unique non-woven acoustic absorber composed of polyester and polypropylene fibers. The polypropylene fibers are extremely fine, producing a high-energy absorption characteristic with low weight. The polyester fibers are added to strengthen the web, while the scrim protects and contains the fibers. This SM600L insulation is the thickest SM-series Thinsulate acoustic insulation available.

3M™ Thinsulate™ insulation applied to automotive interiors reduces interior noise for a quieter, more comfortable ride. 3M™ Thinsulate™ acoustic insulation is made from a unique combination of fine microfibers that absorb high frequency noise and thicker fibers that provide recovery and loft. It is compressible, lightweight, and conformable.

Features

• Enhanced Acoustic Performance: Delivers more acoustic absorption per unit weight vs. competitive products
• Weight Reduction Benefits: Helps customers meet mass reduction goals
• Quieter Vehicle Environment: Non-woven sound absorbing fibers create a quieter vehicle environment
• Moisture-Resistant Materials: Hydrophobic fibers resist moisture, mold and mildew

Ordering Guide

• Mercedes Sprinter:
  • Sprinter 144: 60 Feet
  • Sprinter 170: 70 Feet
  • Sprinter 170 EL: 80 Feet
• Ford Transit:
  • Transit 118: 50 Feet
  • Transit 148: 60 Feet
  • Transit 148 EL: 70 Feet
• Ram Promaster:
  • Promaster 136: 40 Feet
  • Promaster 159: 50 Feet
  • Promaster 159 EXT: 60 Feet

Specifications

• Roll Width: 60"
• Thickness/Weight: SM600L is 1.65 inches (42mm) thick, 0.95 lbs/cubic foot
• Application Recommendations:
  • Door Panels
  • Headliner
  • Instrument Panels
  • Van Walls
  • Pillars
• Style: Fibers are contained in a single black scrim
• Quiet: 3M™ Thinsulate™ has highly efficient acoustic absorption, particularly in middle to high frequency ranges.
• Light: Thinsulate acoustic insulation products are made from lightweight polyester and polypropylene non-woven fibers.

To view more information see: 3M™ Thinsulate™ Insulation Technical Data Sheet - SM600L
