Pre-Wired Lighting Dimmer Kit
1/6
  • Pre-Wired Lighting Dimmer Kit

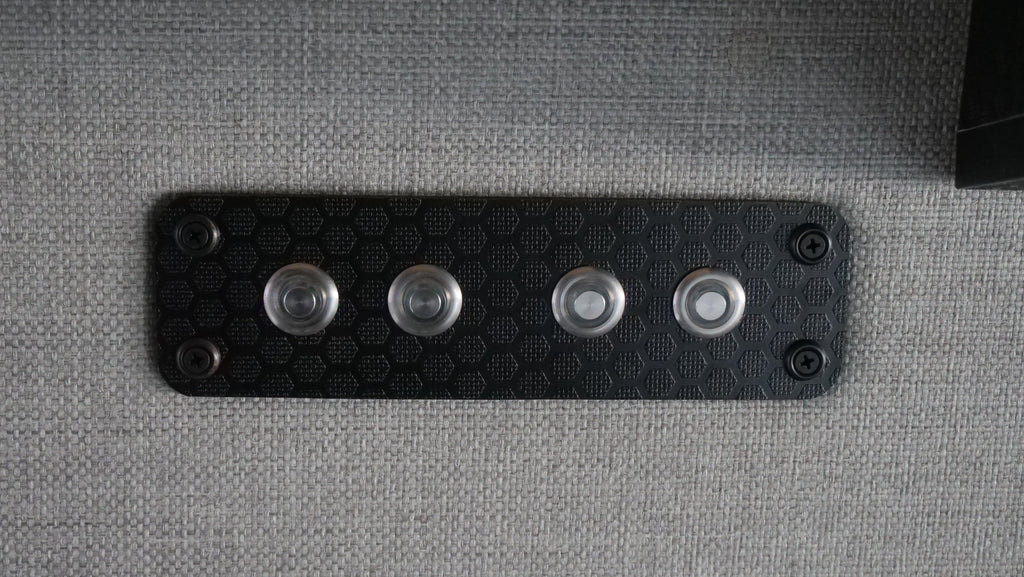

  • Pre-Wired Lighting Dimmer Kit - Quad Dimmer

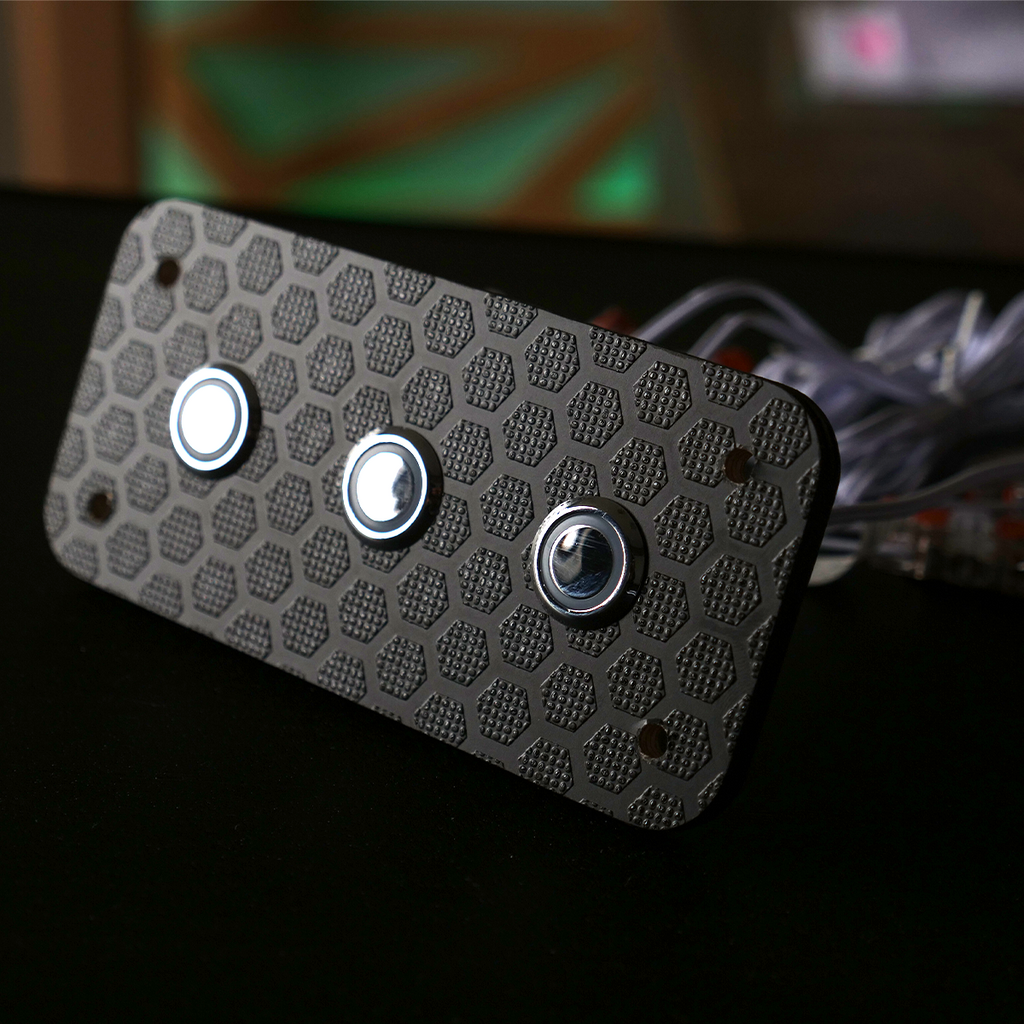

  • Pre-Wired Lighting Dimmer Kit - Triple Dimmer

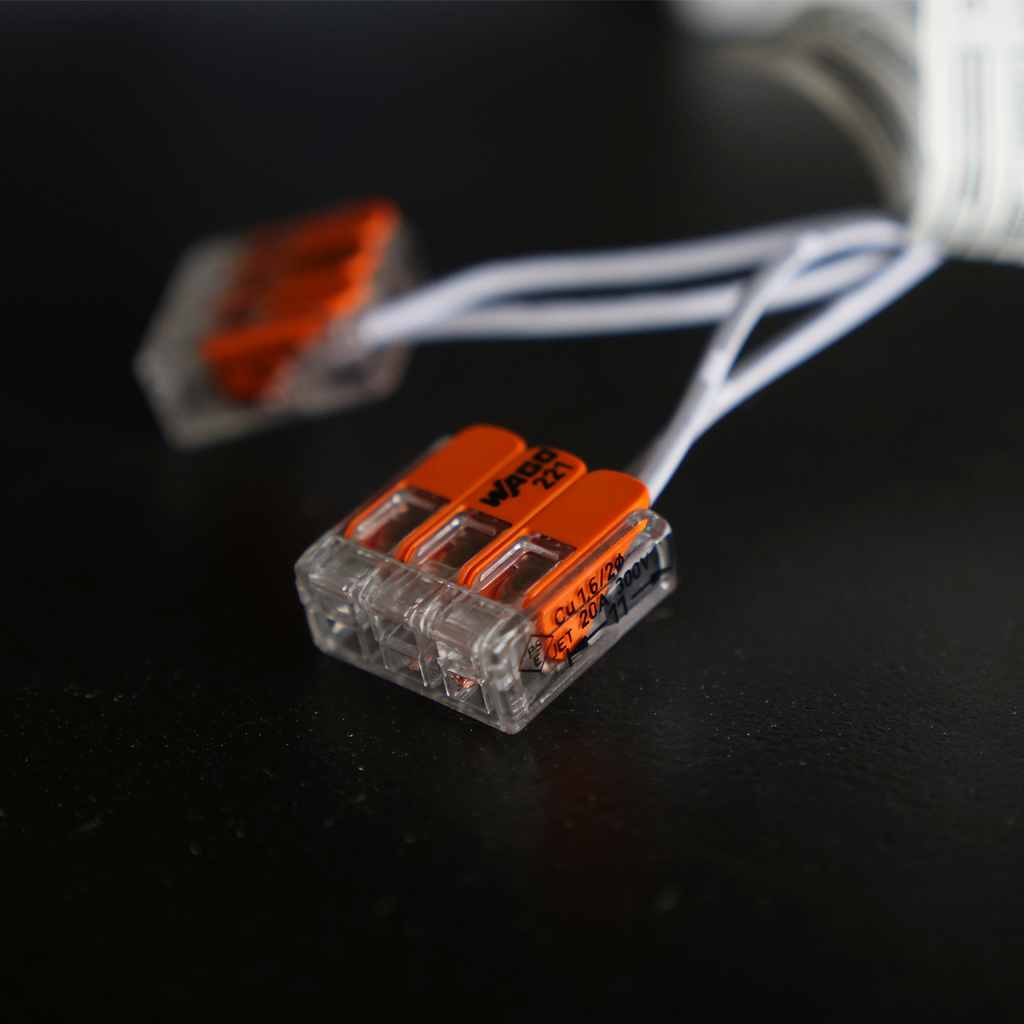

  • Pre-Wired Lighting Dimmer Kit - Wago Connector
  • Pre-Wired Lighting Dimmer Kit - Component

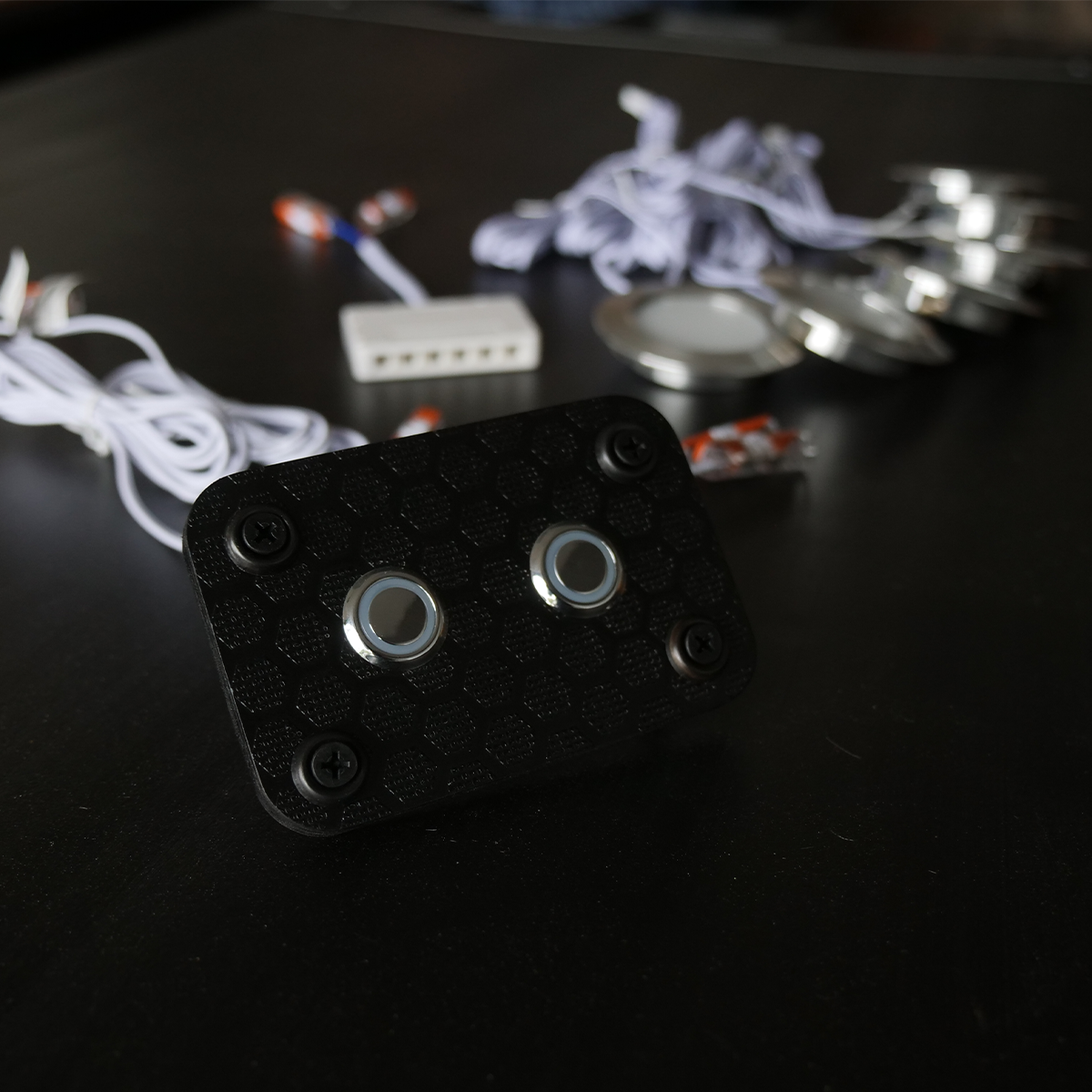

  • Pre-Wired Lighting Dimmer Kit - Double Dimmer
Pre-Wired Lighting Dimmer Kits
$80.00

This Pre-Wired Lighting & Dimmer Kit includes all of our favorite components to make electrical lighting a breeze! We pre-wired this kit for you to save the time and headache of troubleshooting your 12V lighting setup. This kit uses only the best parts for two main goals: Beautiful function and easy installation. This can be installed or removed in only a few minutes with the best connectors on the market.



This Lighting Wiring Kit is designed not only for convenience but also for versatility, making it an ideal solution for various lighting needs in your van. With its pre-wired components, you can easily customize your lighting setup to fit your specific requirements for illuminating a cozy living space. The tactile-activated lights provide intuitive control, allowing you to effortlessly adjust brightness levels with just a tap or hold, ensuring you have the perfect ambiance for any occasion.



Moreover, the kit's high-quality connectors and components ensure a reliable and efficient electrical system. The use of Wago Lever nuts simplifies the splicing process, making it accessible even for those with minimal electrical experience. You can trust that your lighting will perform consistently and safely when installed correctly. This kit not only saves you time during installation but also enhances the overall functionality and aesthetic of your space, allowing you to enjoy your adventures with well-lit comfort.

Note: Dimmers rated for 5A per button (equivalent of 6 puck lights) it is recommended to use an inline 5A fuse per button. Not intended for use for 24vdc power systems.



Features

  • Convenience: Pre-wired and ready to install
  • Lighting Type: 12V LED pucks pop right into the wiring port using clips
  • Splicing Ease: Wago Lever nuts make splicing easier than ever before
  • Power Rating: Rated for 12VDC with an inline 5A fuse (per 6 lights)
  • User Control: Lights are tactile-activated. Tap to turn on, hold to dim up, hold to dim down, tap to turn off. Lights feature low blue color when powered off but with active power supply.
  • Connector Types:
    • All power output wires get two-lever wago connectors
    • Power Input wires fitted with two-lever wago connector for single dimmer plates
    • Power Input wires fitted with three-lever wago connector for double dimmer plates
    • Power Input wires fitted with five-lever wago connector for quad dimmer plates
  • Note: Dimmers rated for 5A per button (equivalent of 6 puck lights) it is recommended to use an inline 5A fuse per button. Not intended for use for 24vdc power systems.

What's Included

  • The Dimmer and Wiring Only Kit includes:
    • 1-4 dimmers pre-mounted on plate with wiring
    • (4) Fasteners + 1/4" Finish Washers (1-1/4" Black Oxide)

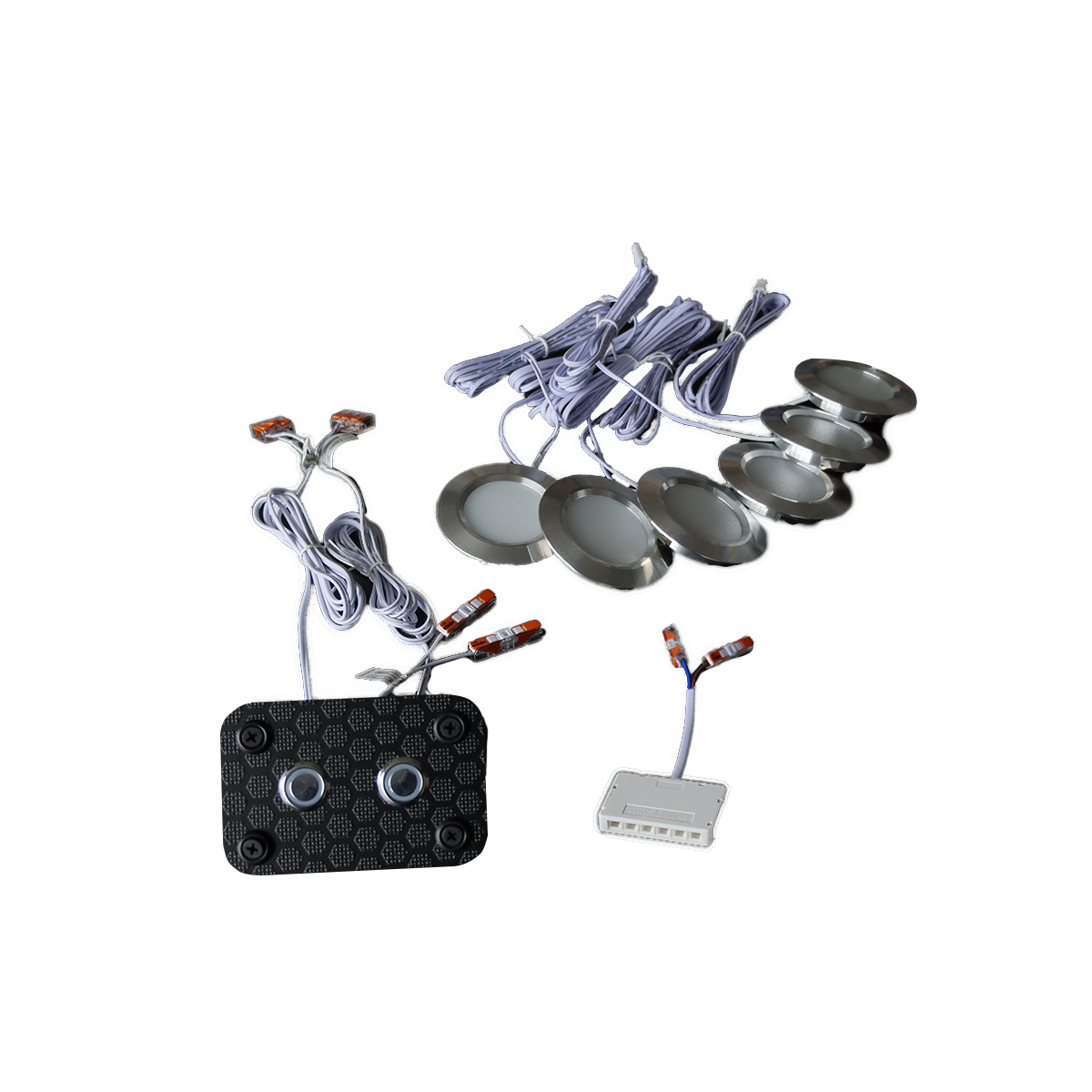

  • The Set of 6 Light Kit includes:

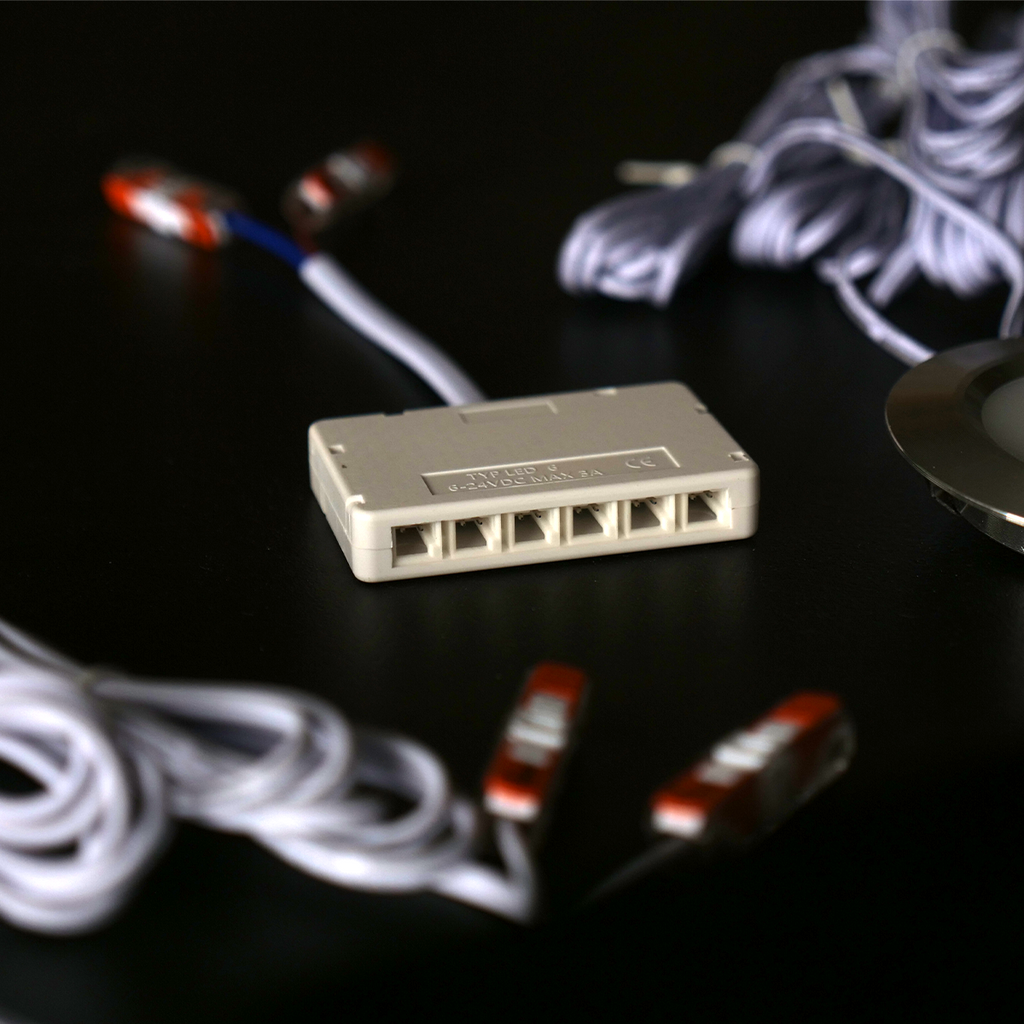

    • (1) 6-plug wiring port(s)
    • 1 dimmer pre-mounted on plate with wiring
    • (4) Fasteners + 1/4" Finish Washers (1-1/4" Black Oxide)
    • (6) 12V LED Puck Lights (2-1/8" cutout)
  • The Set of 12 Light Kit includes:
    • (2) 6-plug wiring port(s)
    • 2-4 dimmer pre-mounted on plate with wiring
    • (4) Fasteners + 1/4" Finish Washers (1-1/4" Black Oxide)
    • (12) 12V LED Puck Lights (2-1/8" cutout)

Resources

Video Title: How To Wire And Use Puck Lights For Your Van Ceiling Kit



Video Title: Pre Wired Dimmer Switches For DIY Van Builders



Learn more about the Pre-Wired Lighting & Dimmer Kits by watching the two videos above. If you have any other questions, please reach out to us directly by emailing office@sergsupply.com
